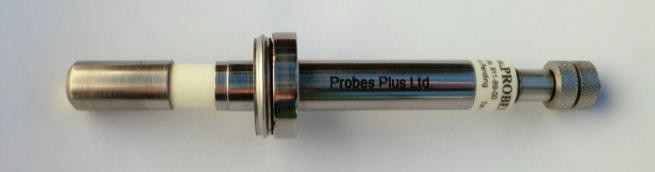

911-89-00

Category:

Additional information

Technical Specifications

MANUFACTURED BY: Probes Plus Limited
Part Number: 911-89-00
Replaces: Emerson / Mobrey / Solartron CEGB HYDRASTEP
Part Number: 459600201
Fixing Method: 4 Bolt Clamp Plate
Maximum Pressure 207 Bar (20.7MPa / 3000psi)
Maximum Temperature 380°C (720°F)
Test Pressure 420 Bar (42MPa / 6000psi)
Insulator Material Alumina
Body Material Stainless Steel
Sealing Type / Gasket Type Spiral Wound Stainless Steel Graphite Gasket
Total Length 148mm
Insertion Length 54mm
Tip Diameter 13.5mm
Cable Connection Method Twin Locking Thumb Nuts
